Introduction

DNS is essential for smooth communication and navigation on the internet. Without DNS, the internet would be far less accessible and user-friendly. This blog will explore what DNS is, how it works, and why it is fundamental to the internet’s functionality. Even if you’re a beginner, this blog will help you understand the crucial role of DNS in making the web easier to navigate.

What is DNS?

DNS stands for Domain Name System. Servers communicate using IP addresses, but remembering every server’s IP address is difficult for humans. For example, if we had to use an IP address like 192.168.1.1 to visit Google, it would be very challenging, especially since we visit multiple websites daily. This is why we use DNS to make accessing websites easier by using domain names instead of IP addresses.

IP Addresses: Numerical labels assigned to each device connected to a computer network (e.g., 192.168.1.1 for IPv4 or 2001:0db8:85a3:0000:0000:8a2e:0370:7334 for IPv6).

The Domain Name System, or DNS, is a system that transforms domain names into IP addresses to facilitate user navigation of the internet. DNS works by maintaining a database of domain names and their corresponding IP addresses, called DNS records. These records are stored on DNS servers and are used to translate domain names into IP addresses when a user types a URL into their browser. DNS is a distributed database implemented in a hierarchy of name servers. It is an application layer protocol for message exchange between clients and servers and is required for the functioning of the internet.

DNS Components

DNS is made up of several essential components that collaborate to translate human-readable domain names into IP addresses. These components ensure DNS queries are resolved efficiently and accurately. Here are the main components of DNS:

1. DNS Resolver

The DNS resolver, also called a recursive resolver or DNS client, helps find the IP address for a domain name. It speeds up this process by storing recent answers and, if it doesn’t have the answer, asks other DNS servers until it finds the right one.

2. Root Name Servers

Root name servers are the first step in finding website addresses and are at the top of the DNS system. There are 13 main root servers, named A to M, with many copies around the world to ensure they work well. They don’t have specific website addresses but can point to servers that do.

3. Top-Level Domain (TLD) Name Servers

TLD name servers manage top-level domains like .com, .org, .net, and country-specific ones like .uk or .jp. They handle domains under their TLD by knowing the main servers for those domains and responding to root name servers by pointing to the correct authoritative name servers.

4. DNS Records

DNS works by keeping a list of domain names and their matching IP addresses, called DNS records. These records are stored on DNS servers and help translate domain names into IP addresses when you type a URL into your browser. Common types of DNS records include:

• A Record: Maps a domain to an IPv4 address.
• AAAA Record: Maps a domain to an IPv6 address.
• CNAME Record: Alias for one domain name to another (canonical name).
• MX Record: Specifies mail exchange servers for handling email.
• TXT Record: Holds text information, often used for verification and security purposes.
• NS Record: Indicates which servers are authoritative for the domain.
• SRV Record: Specifies the location of services (like VoIP or chat servers).
• PTR Record: Used for reverse DNS lookups to map IP addresses back to domain names.

5. DNS Caching

Caching temporarily stores DNS query results to reduce delay and ease the load on DNS servers. Key aspects include:

• Resolver Cache: The local DNS resolver stores responses for a time specified in the DNS record (TTL).
• Browser Cache: Web browsers cache DNS results to make browsing faster.
• OS Cache: Operating systems keep a cache of DNS responses to avoid repeating queries.

6. Reverse DNS Lookup

Reverse DNS lookup is the process of resolving an IP address back to its domain name. It’s used in various scenarios, such as:

• Network Troubleshooting: Helps network administrators identify the hostname associated with an IP address.
• Email Spam Filtering: Mail servers use reverse DNS lookups to verify the origin of email messages and reduce spam.

How DNS Works with an Example

When you type “google.com” into your web browser, the DNS (Domain Name System) server starts by checking if it already knows the IP address for that domain name in its memory cache. If the IP address isn’t found there, the DNS server sends a request to a resolver server, typically operated by your internet service provider (ISP).

If the resolver server doesn’t have the IP address stored, it begins a series of queries starting with the root servers. These root servers are like the top-level directories of the internet’s address book, and there are 13 sets of them distributed globally.

Although the root servers don’t directly know the IP address of “google.com,” they provide crucial directions to the resolver. They point the resolver towards the TLD (Top-Level Domain) server responsible for “.com” domains. This TLD server manages information for all domains ending in “.com,” including “google.com.”

The TLD server, in turn, directs the resolver to the authoritative name servers that specifically handle “google.com.” These authoritative servers are like the definitive sources of information about the domain, including its IP address.

Once the resolver receives the IP address from the authoritative name servers, it passes this information back to your computer. Now armed with the IP address, your computer can establish a connection with Google’s web servers and load the webpage you requested.

To speed up future requests, the resolver stores this IP address in its cache for a certain period, defined by the Time To Live (TTL) value associated with the DNS records. This caching mechanism helps reduce the time and workload involved in resolving domain names repeatedly.

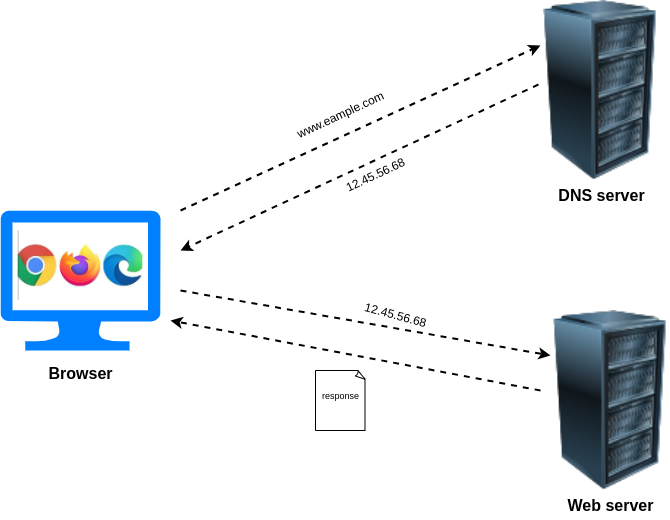

          sample IMAGE

In Summary

DNS is a hierarchical and distributed system that efficiently resolves domain names to IP addresses through a series of queries and responses between DNS resolvers, root servers, TLD servers, and authoritative name servers. This process enables users to access websites and other internet services using human-readable domain names.
